The set-up below was used to prepare hydrogen chloride gas and react it with iron powder.Study it and answer the questions that follow.

The set-up below was used to prepare hydrogen chloride gas and react it with iron powder.Study it and answer the questions that follow.

At the end of the reaction, the iron powder turned into a light green solid
a) Identify the light green solid
b) At the beginning of the experiment, the pH of the solution in container L was about 14. At the end, the pH was found to be 2. Explain.

---

a) Iron (II) chloride

b) The solution was basic hence pH of 14.0. Excess hydrogen chloride (HCl) neutralized all the alkali and then the solution became acidic due to excess HCl which is acidic

---

johnmulu answered the question on April 20, 2017 at 13:50

Exams With Marking Schemes

• Grade 1
• Grade 2
• Grade 3
• Grade 4
• Grade 5
• Grade 6
• Grade 7
• Grade 8
• Grade 9
• PP1
• PP2
• Playgroup
• Form 1
• Form 2
• Form 3
• Form 4

Related Questions

---

• A student set out to prepare iron (III) chlorine using the apparatus shown in the diagram below. (Solved)


  A student set out to prepare iron (III) chlorine using the apparatus shown in the diagram below.

  i) Explain why: I. It is necessary to pass chlorine gas through the apparatus before heating begins
  II. calcium oxide would be preferred to calcium chloride in the guard tube
  ii) What property of iron (III) chloride makes it possible to be collected as shown in the diagram?


  Date posted: April 20, 2017 .    Answers (1)

• The diagram below shows a set up for the laboratory preparation and collection of dry chlorine gas (Solved)


  The diagram below shows a set up for the laboratory preparation and collection of dry chlorine gas


  a) Name
  i) Substance G
  ii) A suitable drying agent
  b) What property of chlorine makes it possible for it to be collected as shown in the diagram?


  Date posted: April 20, 2017 .    Answers (1)

• In an experiment, dry hydrogen chloride gas was passed through heated zinc turnings as shown in the diagram below. The gas produced was then passed through heated lead (II) oxide. (Solved)


  In an experiment, dry hydrogen chloride gas was passed through heated zinc turnings as shown in the diagram below. The gas produced was then passed through heated lead (II) oxide.

  i) What is the function of water in the flask?
  ii) How would the total mass of tube V and its contents compare before and after the experiment? Explain.


  Date posted: April 20, 2017 .    Answers (1)

• In an experiment, chlorine gas was passed into moist hydrogen sulphide in a boiling tube as shown in the diagram. (Solved)


  In an experiment, chlorine gas was passed into moist hydrogen sulphide in a boiling tube as shown in the diagram.

  a) What observation was made in the boiling tube?
  b) What precaution should be taken in carrying out this experiment? Give a reason.
  c) Distinguish between the bleaching action of chlorine and that of sulphur(IV) Oxide.
  d) Write an equation of the reaction that took place in the boiling tube


  Date posted: April 20, 2017 .    Answers (1)

• Study the flow chart below and answer the questions that follow. (Solved)


  Study the flow chart below and answer the questions that follow.

  Identify Z and M.

  Date posted: April 20, 2017 .    Answers (1)

• The diagram below shows part of the processes in the manufacture of sulphuric (VI) acid. Study it and answer the question that follow. (Solved)


  The diagram below shows part of the processes in the manufacture of sulphuric (VI) acid. Study it and answer the question that follow.

  i) Write an equation for the formation of sulphur (IV) oxide from sulphur
  ii) What is the role of concentrated sulphuric (VI) acid in chamber A?
  iii) Name two catalysts that can be used in the catalystic chamber A?
  iv) State two roles of the heat exchanger


  Date posted: April 20, 2017 .    Answers (1)

• The diagram below shows the Frasch process used for extraction of sulphur. Use it to answer the questions that follow. (Solved)


  The diagram below shows the Frasch process used for extraction of sulphur. Use it to answer the questions that follow.

  i) Identify X.
  ii) Why is it necessary to use super heated water in this process?
  iii) State two physical properties of sulphur that makes it possible for it to be extracted by this method

  Date posted: April 20, 2017 .    Answers (1)

• The flowchart below shows some of the processes involved in large scale production of sulphuric (IV) acid. Use it to answer the questions that follow. (Solved)


  The flowchart below shows some of the processes involved in large scale production of sulphuric (IV) acid. Use it to answer the questions that follow.

  a) Describe how oxygen is obtained from air on a large scale.
  b) i) Name substance A
  ii) Write an equation for the process that takes in the absorption chamber

  Date posted: April 20, 2017 .    Answers (1)

• The set up below was used to prepare a gas and study some of its properties. Study it and answer the questions that follow: (Solved)


  The set up below was used to prepare a gas and study some of its properties. Study it and answer the questions that follow:

  aState and explain the observations made in the:
  i) Tube labelled A;
  ii) State one precaution that should be taken when carrying out this experiment.


  Date posted: April 20, 2017 .    Answers (1)

• Below is a sketch of graph showing the change in viscosity (Ease of flow) with temperature when solid sulphur is heated. Describe what happens to the sulphur molecules when is heated from 150^oC to about 200^oC. (Solved)


  Below is a sketch of graph showing the change in viscosity (Ease of flow) with temperature when solid sulphur is heated. Describe what happens to the sulphur molecules when is heated from 150^oC to about 200^oC.


  Date posted: April 20, 2017 .    Answers (1)

• The diagram below shows some processes that take place during the industrial manufacture of sulphuric (VI) acid (Solved)


  The diagram below shows some processes that take place during the industrial manufacture of sulphuric (VI) acid

  i) Write the equation for the reaction in which sulphur (VI) oxide gas is produced
  ii) Why is it necessary to keep the gases pure and dry?
  iii) Describe the process that takes place in chamber G
  iv) Name the gases that escape into environment

  Date posted: April 20, 2017 .    Answers (1)

• Study the flow chart below and answer the questions that follow. (Solved)


  Study the flow chart below and answer the questions that follow.

  a) Name reagent Z.
  b) Describe the process which takes place in step 2
  c) Identify the white solid

  Date posted: April 20, 2017 .    Answers (1)

• Dilute hydrochloric acid and solid sodium sulphite were reacted as shown in the set-up below (Solved)


  Dilute hydrochloric acid and solid sodium sulphite were reacted as shown in the set-up below

  a) Name the gas produced in the flask
  b) give two reasons why no gas was collected in the gas jar

  Date posted: April 20, 2017 .    Answers (1)

• The aparatus shown below was set to prepare and collect hydrogen sulphide gas (Solved)


  The aparatus shown below was set to prepare and collect hydrogen sulphide gas

  a) Name solid C₂
  b) Give a reason why warm water is used.
  c) What observation would be made if hydrogen sulphide gas was bubbled into a solution of lead (II) nitrate?

  Date posted: April 20, 2017 .    Answers (1)

• Study the flow chart below and answer the questions that follow. (Solved)


  Study the flow chart below and answer the questions that follow.

  a) Name (i) Compound T
  ii) Gas U
  b) Give a chemical test that you could use to identify gas U

  Date posted: April 20, 2017 .    Answers (1)

• A sample of air contaminated with carbon (II) oxide and sulphur (IV) oxide was passed through the apparatus shown in the diagram below. (Solved)


  A sample of air contaminated with carbon (II) oxide and sulphur (IV) oxide was passed through the apparatus shown in the diagram below.

  Which contaminant was removed by passing the contaminated air through the apparatus Explain

  Date posted: April 20, 2017 .    Answers (1)

• The diagram below represents the extraction of sulphur by Frasch process (Solved)


  The diagram below represents the extraction of sulphur by Frasch process

  a) Name the substance that passes through tube;
  I.
  II.
  b) What is the purpose of hot compressed air in the process?

  Date posted: April 20, 2017 .    Answers (1)

• The table below shows the observations made when aqueous ammonia was added to cations of elements E, F and G until in excess. (Solved)


  The table below shows the observations made when aqueous ammonia was added to cations of elements E, F and G until in excess.

  i) Select the cation that is likely to be Zn²⁺
  ii) Given that the formula of the cation of element E is E²⁺, write the ionic equation for the reaction between E²⁺ _(aq) and aqueous ammonia.

  Date posted: April 20, 2017 .    Answers (1)

• Study the flow chart below and answer the questions that follow (Solved)


  Study the flow chart below and answer the questions that follow

  i) Identify gas J.
  ii) Using oxidation number, show that ammonia is the reducing agent in step (VI)
  iii) Write the equation for the reaction that occurs in step (V)

  Date posted: April 20, 2017 .    Answers (1)

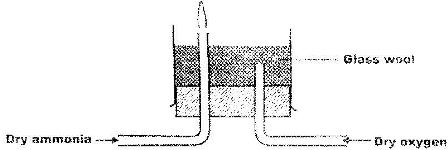

• Dry ammonia and dry oxygen were reacted as shown in the diagram below (Solved)
