In the diagram in figure, water flows through a section of a pipe whose diameter changes as shown

In the diagram in figure, water flows through a section of a pipe whose diameter changes as shown

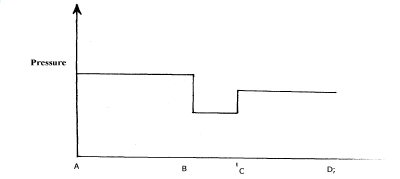

Sketch a graph of the variation of pressure along the line ABCD.

---

---
