The figure shows triangle OPQ in which QN : NP = 1 : 2, OT : TN = 3 : 2 and M is the...

The figure shows triangle OPQ in which QN : NP = 1 : 2, OT : TN = 3 : 2 and M is the mid - point of OQ.

OP = p and OQ = q

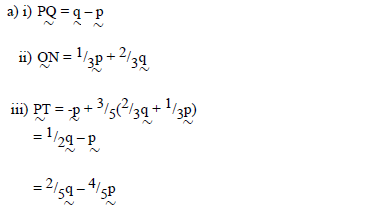

a) Express the following in terms of p and q.
i) PQ
ii) ON
iii) PT

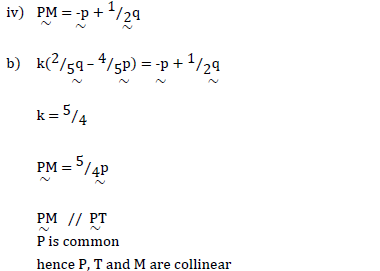

iv) PM
b) Hence show that P, T and M are collinear.

---

---

sharon kalunda answered the question on May 6, 2019 at 13:24
