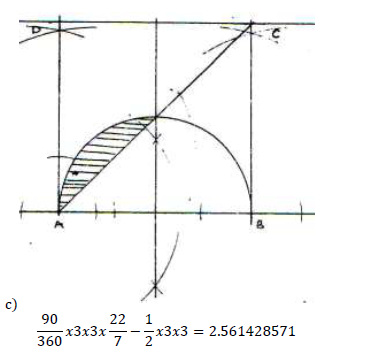

a) Using a ruler and pair of compasses only construct a square ABCD of sides 6cm.

a) Using a ruler and pair of compasses only construct a square ABCD of sides 6cm.
b) A point P moves inside the square such that;
i) 𝐴𝑃 ≤ 𝑃𝐵
ii) 𝐴𝑛𝑔𝑙𝑒 𝐴𝑃𝐵 ≥ 90⁰
iii) P is nearer to AD than AB. construction on the square in (a) show the region that P must lie by shading.
c) Find the area of the region where P must lie.

---

---

sharon kalunda answered the question on May 7, 2019 at 11:14
