PQRS is a trapezium where PQ is parallel to SR. PR and SQ intersect at X, so that SX = kSQ and PX = hPR...

PQRS is a trapezium where PQ is parallel to SR. PR and SQ intersect at X, so that SX = kSQ and PX = hPR where k and h
are constants.
Vectors PQ = 3q and PS = s, SR = q

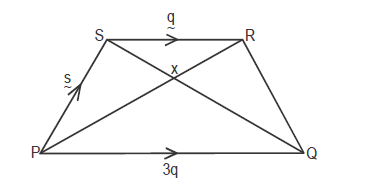

a) Show this information on a diagram.
b) Express vector SQ in terms of s and q
c) Express SX in terms of k, q and s
d) Express SX in terms of h, q and s
e) Obtain h and k
f) In what ratio does X divide SQ ?

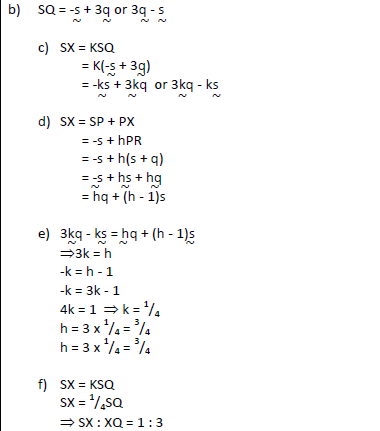

Answers

sharon kalunda answered the question on May 9, 2019 at 07:47

Answer Attachments

Next: A particle starts from rest and moves in a straight line. Its velocity Vm/s is given by V = t² - 3t + 2, where...

Previous: R is partly constant and partly varies as the square of q. When R = 5, q = 1 and R = 21 when q...

View more Mathematics Questions and Answers | Return to Questions Index
