The figure below shows an object O placed in front of an objective lens Lo whose focal length fo is less than fe, the focal...

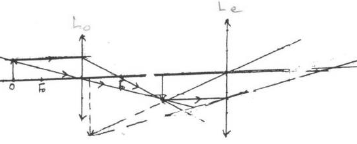

The figure below shows an object O placed in front of an objective lens Lo whose focal length fo is less than fe, the focal length of the eyepiece Le. Complete using ray construction how the arrangement would produce a compound microscope.

---

---

Kavungya answered the question on May 31, 2019 at 08:29
