You are provided with the following - Test-tube - Some sand - Spatula - Measuring cylinder with water - Spring balance Using diagrams describe an experiment to verify law of floatation.

You are provided with the following
- Test-tube
- Some sand
- Spatula
- Measuring cylinder with water
- Spring balance

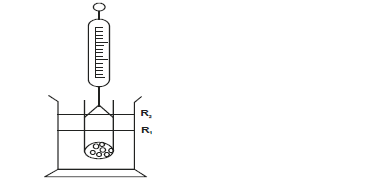

Using diagrams describe an experiment to verify law of floatation.

---

- Pour some water in measuring cylinder and note the level R1
- Using the spatula to float test tube , using sand in water in the measuring cylinder and note the new level R2
- W1, weight of displaced water.
- Remove test tube wipe and weigh it at content using spring balance, W2
- W2 = W1

---

sharon kalunda answered the question on May 31, 2019 at 09:59
