The figure below shows a thick copper conductor placed between two poles of a strong magnet. The wire is free to swing in between the poles.

(a) Indicate on the same diagram the direction in which the conductor swings when the switch K is closed.
(b) State one change that can be made on the set up so that the direction of swing of the conductor is reversed.

---

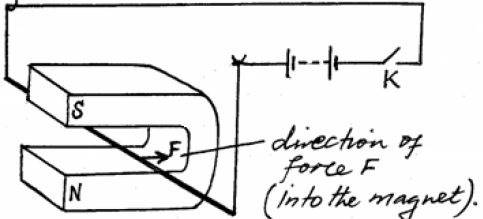

a)
(b) Reversing the direction of flow of electric current in the conductor.
Reversing the direction of magnetic field;

---

Kavungya answered the question on June 3, 2019 at 06:13
