In the figure below ABCDE is a pentagon inscribed in a circle. CX is a tangent to the circle at C and EDX is a...

In the figure below ABCDE is a pentagon inscribed in a circle. CX is a tangent to the circle at C and EDX is a straight line. Angle ADE = 34⁰, angle CAD = 42⁰, AB = BC and BC is parallel to AD. Giving reasons, determine

(a) (i) Angle ABC
(ii) Angle ACD
(iii) Angle EAD
(iv) Angle CXD
(b) Given that ED = 5cm, DX = 4cm, calculate the length of CX

Answers

sharon kalunda answered the question on August 7, 2019 at 07:29

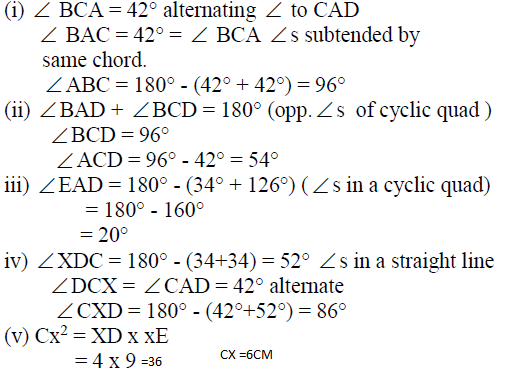

Answer Attachments
