Town B is 20km N60⁰W from village A. Town B is 25km 040⁰ from town C. Village D is due East of town C and dues...

Town B is 20km N60⁰W from village A. Town B is 25km 040⁰ from town C. Village D is
due East of town C and dues South of village A

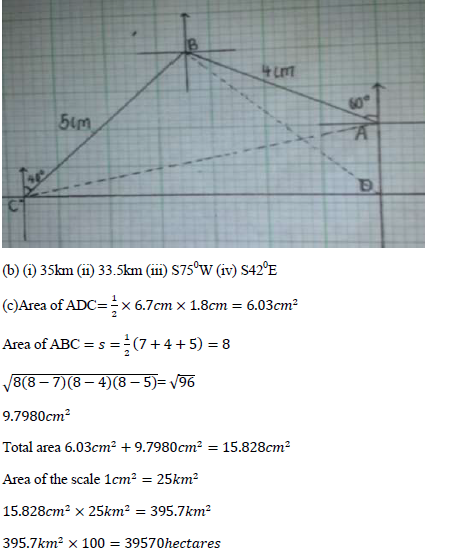

(a) Using a scale 1:500,000 draw a diagram showing a relative position of town B,
town C, village A and village D
(b) Determine
(i) Distance between village A and town C
(ii) Distance between town C and village D
(iii)Compass bearing of town C from village A
(iv) Compass bearing of village D from town
(c) Determine the area enclosed by the diagram in (a) above in hectares

---

---

sharon kalunda answered the question on August 22, 2019 at 09:11
