The figure below shows a pulley system with the load rising at uniform speed.

The figure below shows a pulley system with the load rising at uniform speed.

From the information given, calculate:
(i) The velocity ratio of the machine.
(ii) Mechanical advantage of the machine.
(iii) Efficiency of the machine.

Answers

sharon kalunda answered the question on September 10, 2019 at 05:16

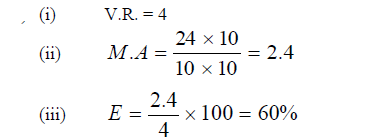

Answer Attachments
