The figure below represent a solid frustum. The faces ABCD and EFGH are parallel squares of sides 10cm and 6 cm respectively. Each...

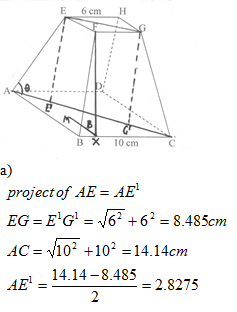

The figure below represent a solid frustum. The faces ABCD and EFGH are parallel squares of sides 10cm and 6 cm respectively. Each of the slanting edges AE, BF, CG and DH are equal to 4cm.

Determine:
a)The length of the projection of AE on the plane ABCD

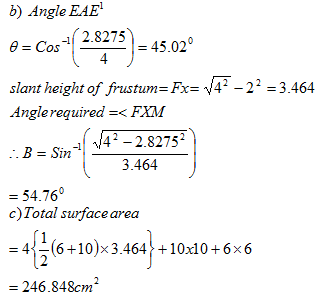

b)The angle between the line AE and the plane ABCD
c)The angle between the plane BCGF and ABCD

Answers

Kavungya answered the question on September 17, 2019 at 09:16

Answer Attachments
