The figure below shows a metal rod AB of length 2m horizontally balanced while supported by a pivot and a string.

The figure below shows a metal rod AB of length 2m horizontally balanced while supported by a pivot and a string.

Determine the mass of the metal rod if the tension is 15N.

---

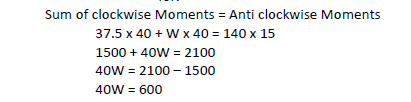

W = 6N.
W = 15N.
M = 1.5Kg or 1500g

---

sharon kalunda answered the question on September 27, 2019 at 08:55
