Three pegs R,S and T are on the corners of a triangular plain field. R is 300m from S on a bearing of 300o and...

Three pegs R,S and T are on the corners of a triangular plain field. R is 300m from S on a bearing of 300o and T is 450 m directly south of R

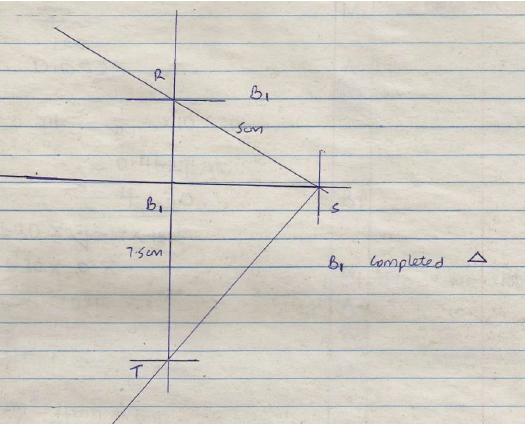

(a) Using a scale of 1:6000 draw a diagram to show the positions of the pegs

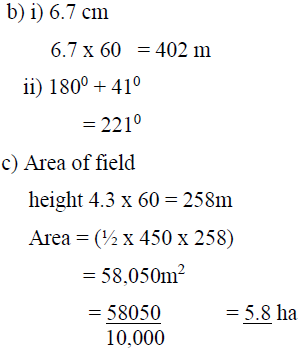

(b) Use the scale drawing to determine:
(i) The distance between T and S in metres.
(ii) The bearing of T from S
(c) Find the area of the field, in hectares correct to one decimal place

Answers


Kavungya
Kavungya answered the question on September 30, 2019 at 07:11

Answer Attachments
