Identify two outstanding characteristic of a collage work.
(Solved)
Identify two outstanding characteristic of a collage work.
Date posted:
October 18, 2019
.
Answers (1)
-
Urban lifestyle may not provide adequate outdoor space for cloth lines. This compels the house occupants to utilize any available space inside the house to...
(Solved)
Urban lifestyle may not provide adequate outdoor space for cloth lines. This compels the house occupants to utilize any available space inside the house to hang washed clothes to dry.
Design a suitable device that can hold several hanging lines considering the following:
i) the device should be collapsible for ease of movement and storage;
ii) it should be stable and strong enough to hold clothes to dry;
iii) it should be adjustable to different heights.
REQUIREMENTS
(a) Make freehand pictorial sketches of two possible designs of the device.
(b) Select one of the designs in (a) above and make a refined pictorial sketch and label two parts.
(c) Make detailed exploded sketches of the mechanisms used in considerations i and iii above.
(d) (i) List two different materials used in the device.
(ii) State one reason for the choice of each material.
(e) List two methods that could be used in joining the parts of the device and state where each is applied.
Date posted:
October 17, 2019
.
Answers (1)
-

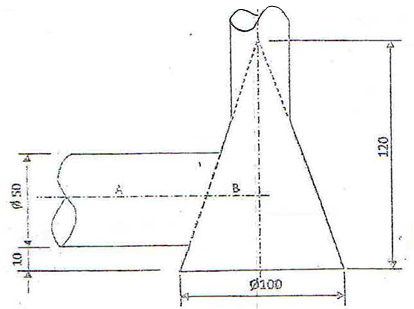

Figure below shows a branch pipe A connected to a conical shaped base of a chimney B.
Draw the curves of interpenetration between the pipe and...
(Solved)
Figure below shows a branch pipe A connected to a conical shaped base of a chimney B.
Draw the curves of interpenetration between the pipe and the conical base in:
a)Plan
b)Elevation
Date posted:
October 17, 2019
.
Answers (1)
-

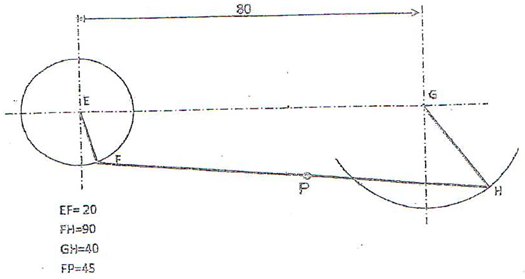

In the mechanism shown in figure below, the crank EF rotates about centre E while GH oscillates about G.
Plot the locus of point P for...
(Solved)
In the mechanism shown in figure below, the crank EF rotates about centre E while GH oscillates about G.
Plot the locus of point P for one complete revolution of EF.
Date posted:
October 17, 2019
.
Answers (1)
-

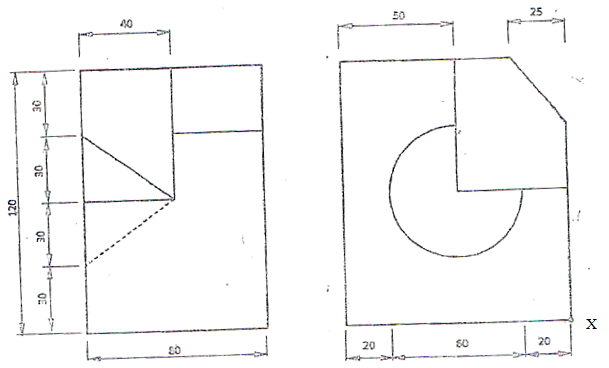

Figure below shows the three orthographic views of a machined block drawn in first angle projection.
Draw full size, the isometric view of the block taking...
(Solved)
Figure below shows the three orthographic views of a machined block drawn in first angle projection.
Draw full size, the isometric view of the block taking corner X as the lowest point.
Date posted:
October 17, 2019
.
Answers (1)
-

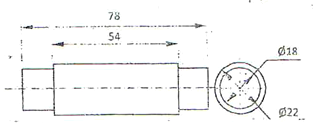

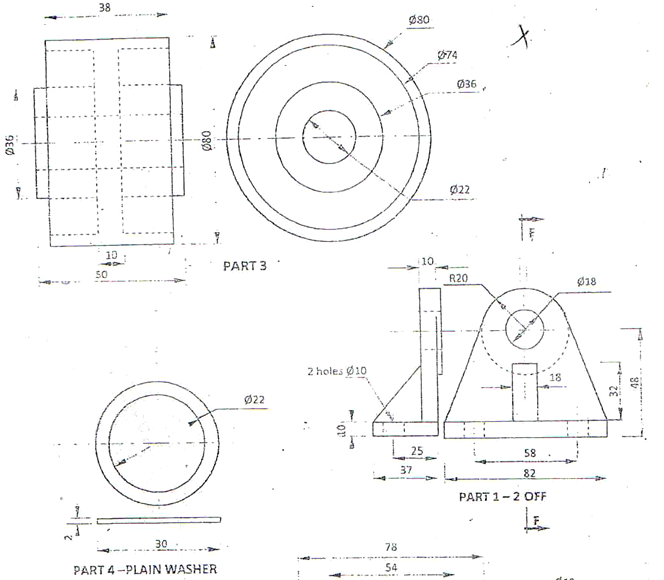

Figure below shows parts of a machined component drawn in first angle projection.
Assemble the parts and draw the following:
a)Sectional front elevation through the cutting plane...
(Solved)
Figure below shows parts of a machined component drawn in first angle projection.
Assemble the parts and draw the following:
a)Sectional front elevation through the cutting plane F-F.
b)The plan.
Date posted:
October 17, 2019
.
Answers (1)
-

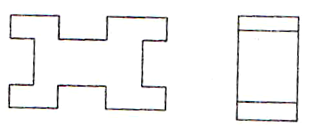

Figure below shows two views of a shaped block drawn in first angle projection. Sketch the third view by projecting from the given views.
(Solved)
Figure below shows two views of a shaped block drawn in first angle projection. Sketch the third view by projecting from the given views.
Date posted:
October 17, 2019
.
Answers (1)
-

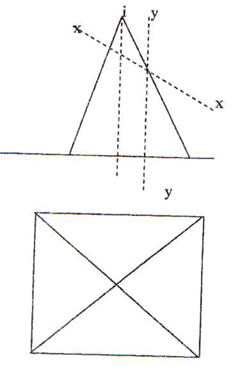

A right square pyramid is truncated along X-X and Y –Y as shown in figure below.
Complete the plan
(Solved)
A right square pyramid is truncated along X-X and Y –Y as shown in figure below.
Complete the plan
Date posted:
October 17, 2019
.
Answers (1)
-

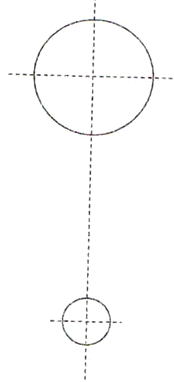

Construct an internal common tangent to the circle given in figure below.
(Solved)
Construct an internal common tangent to the circle given in figure below.
Date posted:
October 17, 2019
.
Answers (1)
-
Figure below shows two views of a block drawn in first angle projection. In good proportionality sketch the block in oblique projection.
(Solved)
Figure below shows two views of a block drawn in first angle projection. In good proportionality sketch the block in oblique projection.
Date posted:
October 17, 2019
.
Answers (1)
-
The Figure below shows a pictorial view of a block.
Using third angle projection, sketch in good proportion the orthographic views of the block.
(Solved)
The Figure below shows a pictorial view of a block.
Using third angle projection, sketch in good proportion the orthographic views of the block.
Date posted:
October 17, 2019
.
Answers (1)
-
Describe each of the following manufactured boards.
(i) Plywood
(ii)Chipboard
(iii)Block board
(Solved)
Describe each of the following manufactured boards.
(i) Plywood
(ii)Chipboard
(iii)Block board
Date posted:
October 17, 2019
.
Answers (1)
-
State one disadvantage of using each of the following items to hold paper on the drawing board .
(i)Masking tape.
(ii)Thumb pins
(Solved)
State one disadvantage of using each of the following items to hold paper on the drawing board .
(i)Masking tape.
(ii)Thumb pins
Date posted:
October 17, 2019
.
Answers (1)
-
Outline six advantages of using computers in drawing.
(Solved)
Outline six advantages of using computers in drawing.
Date posted:
October 17, 2019
.
Answers (1)
-
Explain one use of each of the following lines.
(Solved)
Explain one use of each of the following lines.
Date posted:
October 17, 2019
.
Answers (1)
-
State one reason for using different types of lines in drawing.
(Solved)
State one reason for using different types of lines in drawing.
Date posted:
October 17, 2019
.
Answers (1)
-
Study the sculptural form depicted below.
(Solved)
Study the sculptural form depicted below.
a) Describe the type of sculptural forms
b) Identify and explain three most outstanding elements of art and design that have been effectively used to create the artwork.
c) With reference to the sculpture, outline the factors that would influence the its placement
Date posted:
September 13, 2019
.
Answers (1)
-
Study the poster below and answer the following questions.
(Solved)
Study the poster below and answer the following questions.
a) Classify the poster.
b) Explain any two factors that make the poster communicate effectively.
c) State the most effective placement of the poster.
d) Give any one use of color in poster design.
Date posted:
September 13, 2019
.
Answers (1)
-
The illustration below shows a colour wheel. Fill in all the colours.
(Solved)
The illustration below shows a colour wheel. Fill in all the colours.
Date posted:
September 13, 2019
.
Answers (1)
-
Study the form below and answer the questions that follow.
(Solved)
Study the form below and answer the questions that follow.
a) State the name given to the above form in sculpture.
b) Give two functions of the above form.
c) Explain any two factors that influence display of sculptural works.
Date posted:
September 13, 2019
.
Answers (1)
