The set-up below is used to prepare dry sulphur (IV) Oxide in the laboratory. Answer questions that follow:

The set-up below is used to prepare dry sulphur (IV) Oxide in the laboratory. Answer questions
that follow:

(a) Identify the mistake in the set-up
(b) Write an equation for the reaction in the set-up
(c) State how the polluting effects of the gas on the environment can be controlled

---

a) Method of collection is wrong.Should be collected by downward delivery/upward
displacement of air since the gas is denser than air.

b) Na₂SO_3(s) + H₂SO_4(aq)------->Na₂SO_4(aq) + SO_2(g) + H₂O_(l)

c) By passing it through calcium hydroxide in which the gas dissolves.

---

maurice.mutuku answered the question on October 24, 2019 at 06:33

Exams With Marking Schemes

• Grade 1
• Grade 2
• Grade 3
• Grade 4
• Grade 5
• Grade 6
• Grade 7
• Grade 8
• Grade 9
• PP1
• PP2
• Playgroup
• Form 1
• Form 2
• Form 3
• Form 4

Related Questions

---

• (i) Is concentrated sulphuric acid a weak acid or a strong acid?(ii) Explain your answer in (i) above. (Solved)


  (i) Is concentrated sulphuric acid a weak acid or a strong acid?
  (ii) Explain your answer in (i) above.

  Date posted: October 24, 2019 .    Answers (1)

• Commercial sulphuric acid has a density of 1.8gcm³ (a) Calculate the molarity of this acid (b) Determine the volume of commercial acid in (a) above that can... (Solved)


  Commercial sulphuric acid has a density of 1.8gcm³
  (a) Calculate the molarity of this acid
  (b) Determine the volume of commercial acid in (a) above that can be used to prepare
  500cm³ of 0.2M H₂SO₄ solution

  Date posted: October 24, 2019 .    Answers (1)

• Study the flow chart below and answer the questions that follow (Solved)


  Study the flow chart below and answer the questions that follow

  (a) State the observation made when ammonia is passed over heated Copper (II) Oxide
  (b) Identify:-
  (i) Gas A
  (ii) Liquid B

  Date posted: October 24, 2019 .    Answers (1)

• When dry ammonia gas is passed over hot copper (II) Oxide, a shinny brown residue and a colourless droplets are formed. Explain these two observations (Solved)


  When dry ammonia gas is passed over hot copper (II) Oxide, a shinny brown residue and a colourless droplets are formed. Explain these two observations

  Date posted: October 24, 2019 .    Answers (1)

• State the conditions under which nitrogen react with hydrogen to form ammonia during Haber process (Solved)


  State the conditions under which nitrogen react with hydrogen to form ammonia during Haber process

  Date posted: October 24, 2019 .    Answers (1)

• When a few drops of aqueous ammonia were added to a colourless solution X, a white precipitate was formed. On addition of more aqueous ammonia,... (Solved)


  When a few drops of aqueous ammonia were added to a colourless solution X, a white precipitate was formed. On addition of more aqueous ammonia, the white precipitate dissolved to a colourless solution Q
  (a) Name the white precipitate formed
  (b) Write formula of the complex ion present in the colourless solution Q
  (c) Write an ionic equation for the formation of the white precipitate

  Date posted: October 24, 2019 .    Answers (1)

• Ammonia turns wet red litmus paper blue. Which ion is responsible for this reaction (Solved)


  Ammonia turns wet red litmus paper blue. Which ion is responsible for this reaction

  Date posted: October 24, 2019 .    Answers (1)

• Nitrogen (I) Oxide supports, combustion of burning charcoal. Write an equation to show this reaction (Solved)


  Nitrogen (I) Oxide supports, combustion of burning charcoal. Write an equation to show this reaction

  Date posted: October 24, 2019 .    Answers (1)

• When sulphur powder is heated to over 400^oC the following changes are observed:- At 113^oC it melts into light brown liquid. The liquid then darkens to... (Solved)


  When sulphur powder is heated to over 400^oC the following changes are observed:-
  At 113^oC it melts into light brown liquid. The liquid then darkens to become reddish-brown
  and very viscous at 160^oC. Above 160^oC the liquid becomes almost black. At the boiling point the liquid becomes mobile. Explain these observations

  Date posted: October 24, 2019 .    Answers (1)

• The diagram below was used to investigate the reaction between nitrogen(I)oxide and copper turnings. Study it and answer the questions that follow: (Solved)


  The diagram below was used to investigate the reaction between nitrogen(I)oxide and copper turnings. Study it and answer the questions that follow:

  a) What has been omitted in the set-up?
  b) Write a chemical equation for the reaction that took place in the combustion tube
  c) State one use of gas P

  Date posted: October 24, 2019 .    Answers (1)

• The diagram below represents an in complete set-up for preparation of a dry sample of gas R (Solved)


  The diagram below represents an in complete set-up for preparation of a dry sample of gas R

  a) Complete the set-up to show how a dry sample of gas R is collected
  b) Write a chemical equation for the reaction that produces gas R

  Date posted: October 22, 2019 .    Answers (1)

• The diagram below is a set-up used in preparation of ammonia solution. Study it and answer the questions that follow (Solved)


  The diagram below is a set-up used in preparation of ammonia solution. Study it and answer the questions that follow

  (i) What is the purpose of the filter funnel in the set-up above?
  (ii) What would happen if a delivery tube was used in place of the filter funnel?
  (iii) What observation would be made on litmus paper placed into the solution in the beaker at the end of the experiment?

  Date posted: October 22, 2019 .    Answers (1)

• The diagram below is a set-up for preparation and collection of a gas. Study it answer the questions that follow: (Solved)


  The diagram below is a set-up for preparation and collection of a gas. Study it answer the questions that follow:

  (i) Identify gas X
  (ii) Write an equation for the formation of gas X
  (iii) What precaution should be observed when preparing gas X by the above method?
  (iv) Describe the suitable drying agent for gas X
  (v) How can one confirm that the gas collected is gas X?
  (vi) State two physical properties of gas X

  Date posted: October 22, 2019 .    Answers (1)

• The chart below shows a summary for the preparation of nitrogen gas from air (Solved)


  The chart below shows a summary for the preparation of nitrogen gas from air

  (a) What is the purpose of the sodium hydroxide?
  (b) Write an equation for the reaction taking place in chamber II
  (c) The nitrogen gas obtained is not pure. Explain

  Date posted: October 22, 2019 .    Answers (1)

• A mixture of N₂, H₂ and NH₃ was bubbled through 0.2M hydrochloric acid solution. The final concentration of the acid was found to be 0.1M. Give... (Solved)


  A mixture of N₂, H₂ and NH₃ was bubbled through 0.2M hydrochloric acid solution.
  The final concentration of the acid was found to be 0.1M. Give explanation

  Date posted: October 22, 2019 .    Answers (1)

• Study the flow charts below and use them to answer the questions that follow: (Solved)


  Study the flow charts below and use them to answer the questions that follow:

  (a) Identify possible cations present in:
  (i) Solution A
  (ii) Solution B

  (b) State and explain the observations made when a sample of dry white precipitate B is heated in a test-tube

  Date posted: October 22, 2019 .    Answers (1)

• The diagram below is used in preparation of a gas in the laboratory. Answer the questions that follow; (Solved)


  The diagram below is used in preparation of a gas in the laboratory. Answer the questions that follow;

  (a) Name gas X
  (b) State one physical property which makes it possible for the gas to be collected as shown
  (c) State one commercial use of gas X

  Date posted: October 22, 2019 .    Answers (1)

• (a) Explain the importance of the high percentage of nitrogen in air(b) Why is nitrogen used for storage of semen in artificial insemination? (Solved)


  (a) Explain the importance of the high percentage of nitrogen in air
  (b) Why is nitrogen used for storage of semen in artificial insemination?

  Date posted: October 22, 2019 .    Answers (1)

• Ammonia gas is prepared in the laboratory by the action of an alkali on an ammonium salt. A student wanted to prepare a sample of ammonia... (Solved)


  Ammonia gas is prepared in the laboratory by the action of an alkali on an ammonium salt.
  A student wanted to prepare a sample of ammonia gas in the laboratory.

  (a) Give one alkali that can be used in the above experiment
  (b) Write an equation for the reaction that takes place in the above experiment

  Date posted: October 22, 2019 .    Answers (1)

• The diagram below shows the catalytic oxidation of ammonia gas. Use it to answer the questions that follow:- (Solved)

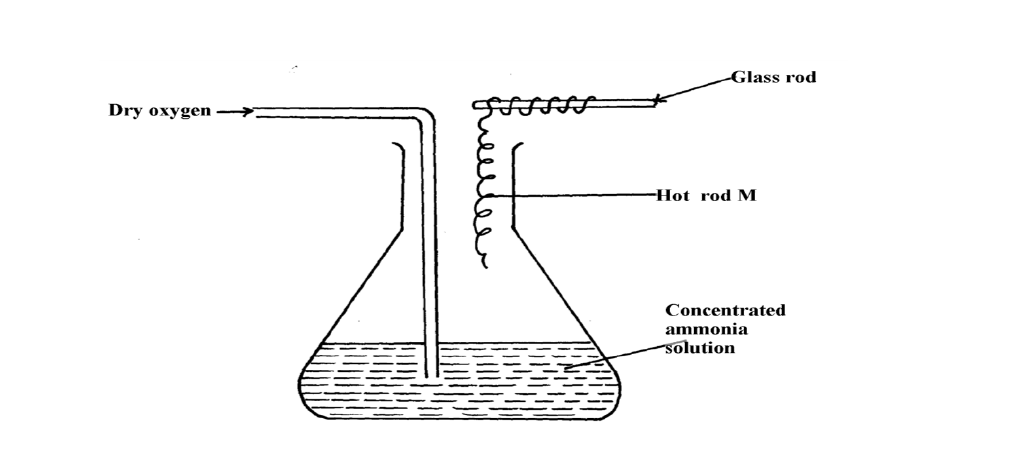

  The diagram below shows the catalytic oxidation of ammonia gas. Use it to answer the questions that follow:-
