The figure below shows air blown into a major tube attached to two minor tubes that have been immersed in water. Explain what is observed...

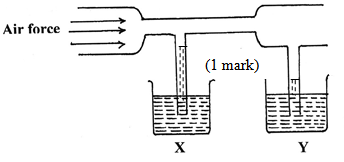

The figure below shows air blown into a major tube attached to two minor tubes that have been immersed in water. Explain what is observed then indicate the levels of water in the tubes of beaker X and Y.

---

When air is blow across them, it reduces the pressure of the air outside the tubes compared to the pressure of air inside the tubes causing the building of water levels.

---

Kavungya answered the question on November 4, 2019 at 06:36
