The figure below (Not drawn to scale) shows the cross-section of a metal bar of length 3metres. The ends are equal semi-circles. (use ?=3.142) Determine the...

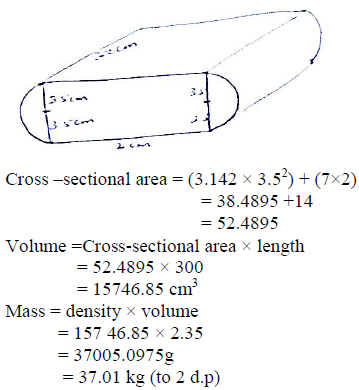

The figure below (Not drawn to scale) shows the cross-section of a metal bar of length 3metres. The ends are equal semi-circles. (use Π=3.142)
Determine the mass of the metal bar in kg if the density of the metal is 2.35g/cm3. (Give your answer to two 2dp).

Answers


Kavungya
Kavungya answered the question on November 7, 2019 at 08:01
