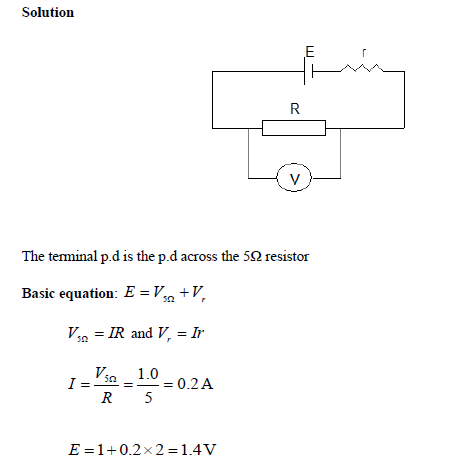

A cell of unknown emf E and internal resistance 2 Ω is connected to a 5 Ω resistance. If the terminal p.d V is 1.0 V, calculate E.
Answer Attachments
