The figure below shows a cross-section of a handle of a screw jack 70 cm long. The pitch of the screw is 0.8 cm

The figure below shows a cross-section of a handle of a screw jack 70 cm long. The pitch of the screw is 0.8 cm

Given that the efficiency is 65%, calculate:
i) the velocity ratio of the system
ii) the mechanical advantage of the screw jack.

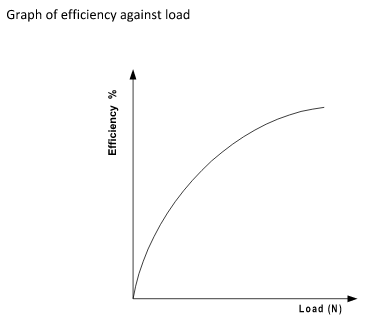

iii.) Sketch a graph of efficiency against Load
iv.) Draw a single moving pulley with a velocity ratio of 2.

---

---

Kavungya answered the question on November 16, 2022 at 11:51
