An electrical heater is labelled 120W, 240V. Calculate; a) The current through the heating element when the heater is on. b) The resistance of the element used...

An electrical heater is labelled 120W, 240V. Calculate;
a) The current through the heating element when the heater is on.
b) The resistance of the element used in the heater.

---

(a)

Electrical power P = VI
120 = 240I
thus, I = 120/240
= 0.5A

(b)
From Ohm’s law
V= 1R
R= V/J
= 240/0.5 = 480O

The resistance of element = 480O

---

Wilfykil answered the question on March 26, 2019 at 13:31

Exams With Marking Schemes

• Grade 1
• Grade 2
• Grade 3
• Grade 4
• Grade 5
• Grade 6
• Grade 7
• Grade 8
• Grade 9
• PP1
• PP2
• Playgroup
• Form 1
• Form 2
• Form 3
• Form 4

Related Questions

---

• An electrical appliance is rated as 240V, 200W. What does this information mean? (Solved)


  An electrical appliance is rated as 240V, 200W. What does this information mean?

  Date posted: March 26, 2019 .    Answers (1)

• What is power as it relates to electrical energy? (Solved)


  What is power as it relates to electrical energy?

  Date posted: March 26, 2019 .    Answers (1)

• How many 100W electric irons could be safely connected to a 240V moving circuit fitted with a 13A fuse? (Solved)


  How many 100W electric irons could be safely connected to a 240V moving circuit fitted with a 13A fuse?

  Date posted: March 26, 2019 .    Answers (1)

• When a current of 2A flows in a resistor for 10 minutes, 15KJ of electrical energy is dissipated. Determine the voltage across the resistor. (Solved)


  When a current of 2A flows in a resistor for 10 minutes, 15KJ of electrical energy is dissipated. Determine the voltage across the resistor.

  Date posted: March 26, 2019 .    Answers (1)

• An electric bulb rated 40W is operating on 240V mains. Determine the resistance of its filament (Solved)


  An electric bulb rated 40W is operating on 240V mains. Determine the resistance of its filament

  Date posted: March 26, 2019 .    Answers (1)

• The figure below shows a wave profile. Determine the frequency of the wave. (Solved)


  The figure below shows a wave profile. Determine the frequency of the wave.



  Date posted: March 26, 2019 .    Answers (1)

• One range of frequencies used in broadcasting varies from 0.5 x 10⁰ Hz to 2.0 x 10⁷ Hz. What is the longest wavelength of this... (Solved)


  One range of frequencies used in broadcasting varies from 0.5 x 10⁰ Hz to 2.0 x 10⁷ Hz. What is the longest wavelength of this range? Velocity of light air =3x10⁸/s

  Date posted: March 26, 2019 .    Answers (1)

• Explain how you would make a diffraction grating on a piece of glass slide. (Solved)


  Explain how you would make a diffraction grating on a piece of glass slide.

  Date posted: March 26, 2019 .    Answers (1)

• Using a pulley system, a girl lifts a load of 1800N using an effort of 400N. If the system is 65% efficient, determine the velocity... (Solved)


  Using a pulley system, a girl lifts a load of 1800N using an effort of 400N. If the system is 65% efficient, determine the velocity ratio of the system.

  Date posted: March 26, 2019 .    Answers (1)

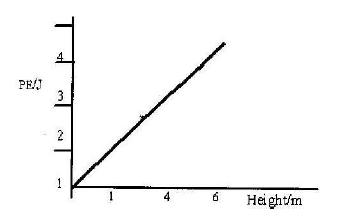

• The figure below shows how the potential Energy (P.E) of a ball thrown vertically upwards. (Solved)


  The figure below shows how the potential Energy (P.E) of a ball thrown vertically upwards.


  On the same axes, plot a graph of kinetic energy of the ball.

  Date posted: March 26, 2019 .    Answers (1)

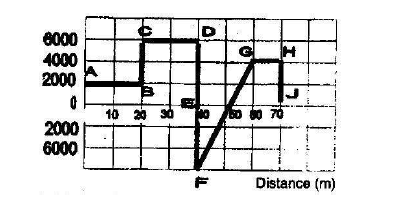

• The figure below shows a force distance graph for a car being on a horizontal ground (Solved)


  The figure below shows a force distance graph for a car being on a horizontal ground


  a) Calculate the total work done
  b) If the velocity just before reaching point D is 6m/s, calculate the power developed by the agent providing the force at this point.
  c) An electric pump can raise water from a lower-level reservoir to the high level reservoir to the high level reservoir at the rate of 3.0 x 105 kg per hour. The vertical height of the water is raised 360m. If the rate of energy loss in form of heat is 200 kW, determine the efficiency of the pump.

  Date posted: March 26, 2019 .    Answers (1)

• Sketch a labeled diagram to show how an arrangement of a single pulley may be used to provide a mechanical advantage of 2. (Solved)


  Sketch a labeled diagram to show how an arrangement of a single pulley may be used to provide a mechanical advantage of 2.

  Date posted: March 26, 2019 .    Answers (1)

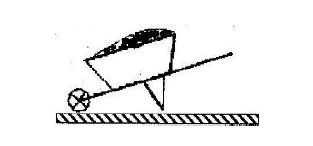

• The figure below shows a loaded wheelbarrow. Indicate and label on the diagram three forces acting on the wheelbarrow when a worker is just about... (Solved)
