Study the flow chart below and answer the questions that follow.

Study the flow chart below and answer the questions that follow.

(i) Name the process taking place in step (I).
(ii) Describe chemical test that can be carried out to show the identity of organic compound A.
(iii) Give the name of the following:
I. A:
II. B:

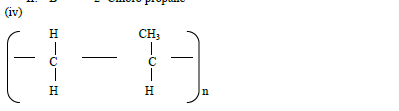

(iv) Give the structural formulae of substance C.
(v) Name the type of reaction that occurs in:
I. Step IV
II. Step VI:
(vi) Give the reagent and the condition necessary for step VI.
Reagent:
Condition:
(b) Give the systematic names of the following compounds:
I. CH₂CHCHCH₂CH₃
II. CH C C H₃

---

(a) (i) Cracking
(ii) When the gas is burnt in air it burns with a pale blue flame.
Does not decolourize purple acidified potassium manganate (II).
(iii) I. A. Propane
II. B 2- Chloro propane

(v) (i) Combustion
(ii) Dehydration
(vi) Conc. H₂SO₄
Temperature of 170⁰C.
(b) (i) Pent-2-ene
(ii) Prop-1-yne.

---
