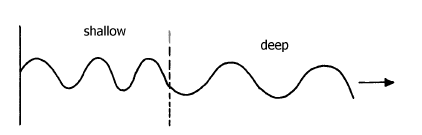

The figure below shows water waves crossing a boundary between deep and shallow water. Complete the diagram to show the wave in the deep region

The figure below shows water waves crossing a boundary between deep and shallow water

Complete the diagram to show the wave in the deep region.

---

---
