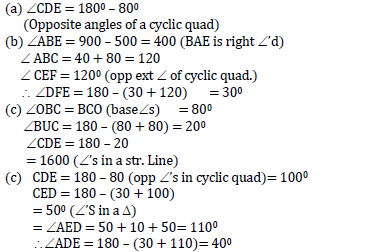

In the figure below, O is the centre of the circle. Angle AEB = 500, angle EBC = 800 and angle ECD = 300. Giving...

In the figure below, O is the centre of the circle. Angle AEB = 500, angle EBC = 800 and angle ECD = 300. Giving reasons
calculate:

(a) Angle CDE
(b) Angle DFE
(c) Obtuse angle COE
(d) Angle ADE

---

---

sharon kalunda answered the question on April 30, 2019 at 09:34
