Use a ruler and a pair of compass only in the constructions below:

Use a ruler and a pair of compass only in the constructions below:

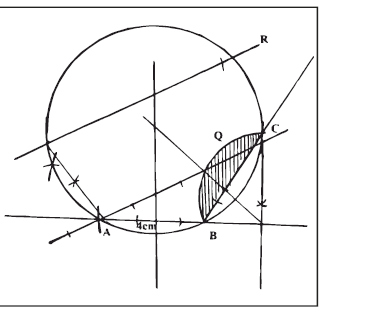

a) Construct a triangle ABC such that AB = 4cm, BC = 5cm and angle ABC = 120°, measure AC.
b) On the same diagram
i) locate P the locus of a point equidistance from the three vertices of the triangle ABC and demonstrate this using a circle.
Measure the radius of the circle.
ii) On the same side of BC as A, construct Q the locus of points such that angle BQC = 120°.
iii) On the side of AC opposite point B construct R the locus of points 4cm from line AC.
iv) Within the circle shade the set of points such that Angle BQC ≥ 120°

Answers


sharon
sharon kalunda answered the question on May 9, 2019 at 12:58

Answer Attachments
