In the figure below P and Q are centres of two circles intersecting at A and B. The radii are 5cm and 8cm as shown in...

In the figure below P and Q are centres of two circles intersecting at A and B. The radii are 5cm and 8cm as shown in the diagram. Length of AB = 8cm.

Determine;

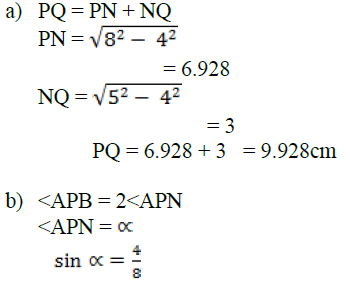

a) Length PQ
b) The size of angle APB

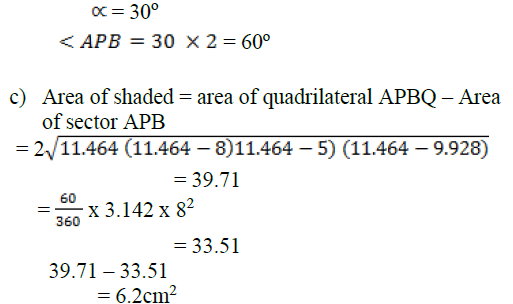

c) The area of the shaded region.

Answers

sharon kalunda answered the question on August 14, 2019 at 13:34

Answer Attachments
