A surveyor recorded the measurements of a field in a field book using lines AB 260m as shown below.

A surveyor recorded the measurements of a field in a field book using lines AB 260m as shown below.

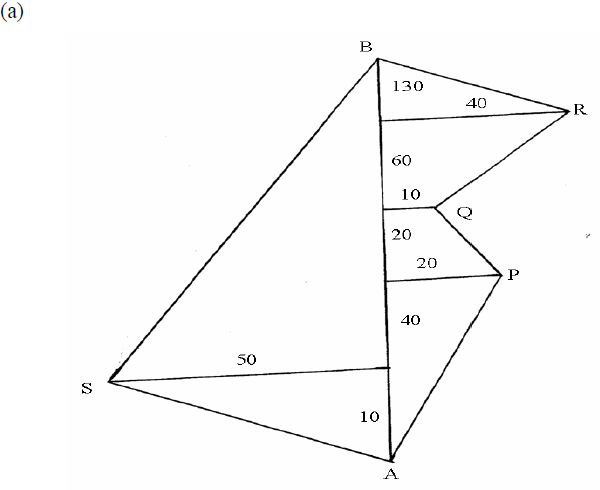

a) Sketch the map of the field.

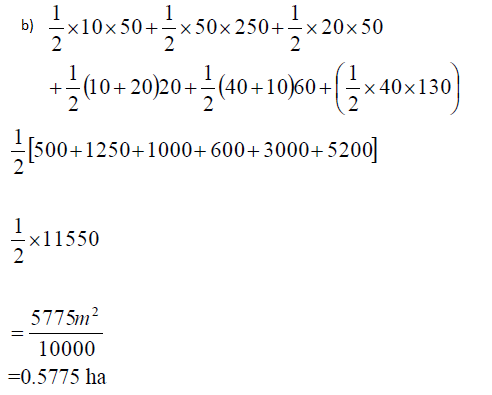

b) Find the area of the field in hectares.

Answers

sharon kalunda answered the question on August 14, 2019 at 11:11

Answer Attachments
