The diagram below represents a Cuboid ABCDEFGH in which FG =4.5cm, GH =8cm HC=6cm(a) Calculate the length FC(b) (i) The size of the angle between...

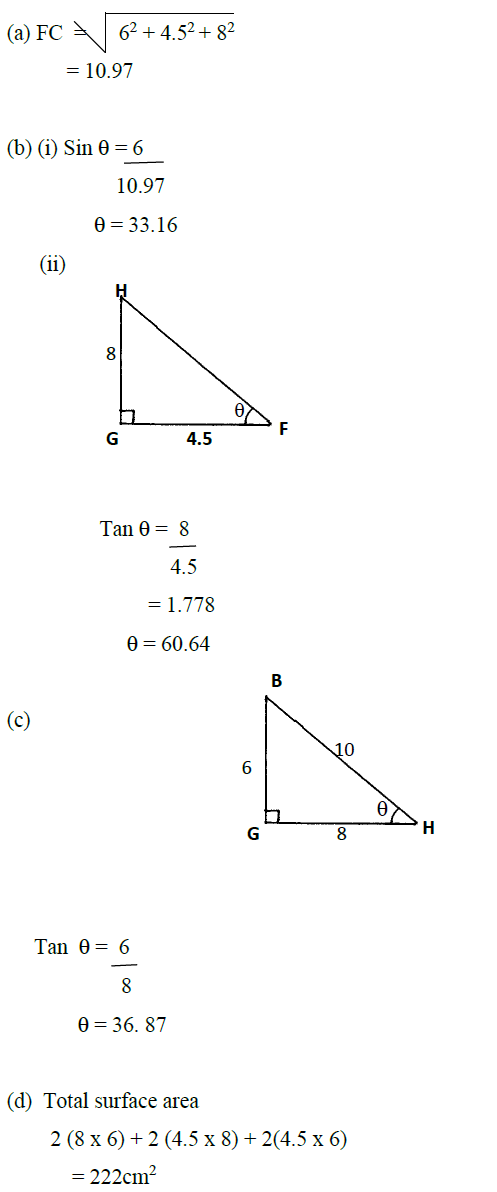

The diagram below represents a Cuboid ABCDEFGH in which FG =4.5cm, GH =8cm HC=6cm

(a) Calculate the length FC
(b) (i) The size of the angle between the lines FC and FH
(ii) Size of the angle between the line AB and FH.
(c) The size of the angle between the planes ABHE and the plane FGHE.
(d) The total surface area of the cuboid (closed)

---

---

sharon kalunda answered the question on August 29, 2019 at 09:28
