The figure below shows a block with a graduated side and dimensions 4cm by 16cm, just about to be lowered into a liquid in an overflow...

The figure below shows a block with a graduated side and dimensions 4cm by 16cm, just about to be lowered
into a liquid in an overflow can.

During an experiment with this set-up, the following was recorded:
- The block floated with three-quarter of it submerged.
- Initial reading of balance = 0g
- Final reading of balance = 154g

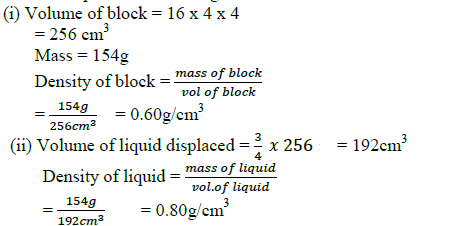

Use the information to determine the density of
(i) the block
(ii) the liquid

---

---

sharon kalunda answered the question on September 6, 2019 at 07:14
