A trolley of mass 5.00kg resets on a plain horizontal ground shown in the figure below. i) On the sketch below show the forces acting on...

A trolley of mass 5.00 kg resets on a plain horizontal ground shown in the figure below.

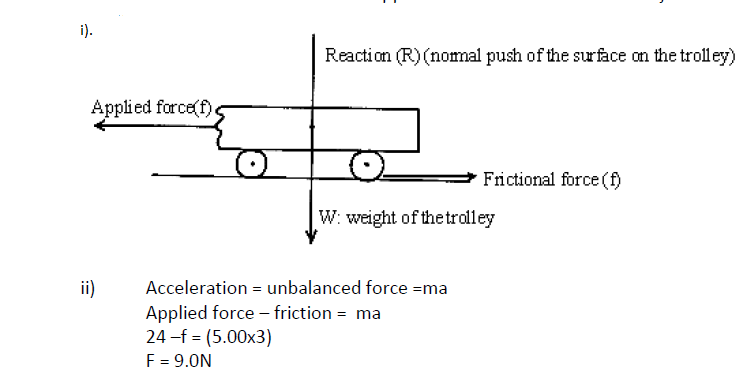

i) On the sketch below show the forces acting on it when pulled in one direction

ii) When trolley is pulled with a horizontal force of 24N, the trolley accelerates at 3ms-2.Find the frictional force acting on the trolley

---

---

sharon kalunda answered the question on September 26, 2019 at 08:36
