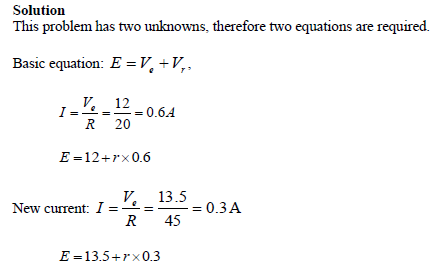

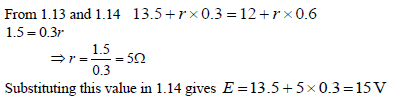

The terminal p.d of a battery is 12 V when an external resistance of 20 Ω is connected and 13.5 V when an external resistance of 45 Ω is connected. Calculate the emf and internal resistance of the battery.
Answer Attachments
