With aid of diagrams differentiate between concave,convex slopes

With aid of diagrams differentiate between concave,convex slopes.

Answers


Martin

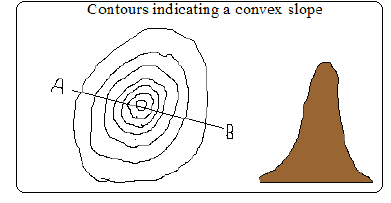

Convex Slopes

- One curved outwards

- Indicated by contours which are close together at the bottom and widely spaced together at the top.


Concave Slopes

- One curved inwards.

- Contours are close together at the top and widely spaced at the bottom

marto answered the question on March 26, 2019 at 08:56
