A vertical object is placed at the focal point F of a diverging lens as shown in figure below.

A vertical object is placed at the focal point F of a diverging lens as shown in figure below.

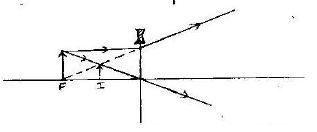

Sketch a ray diagram to show the image of the object.

---

---
