The figure below shows a wire A and a spring B made of the same material. The thickens of the wire is the same in...

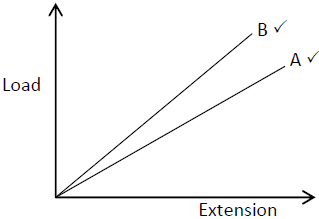

The figure below shows a wire A and a spring B made of the same material. The thickens of the wire is the same in both cases. Masses are added on each at the same interval and the extension noted each time. Sketch the graphs of load against extension for each assuming Hookes law is obeyed.

---

---
