In the figure below PQR and S are points on the circumference of a circle centre O. The point TSO and Q lie on a straight...

In the figure below PQR and S are points on the circumference of a circle centre O. The point TSO
and Q lie on a straight line MPT is a tangent to the circle at P.

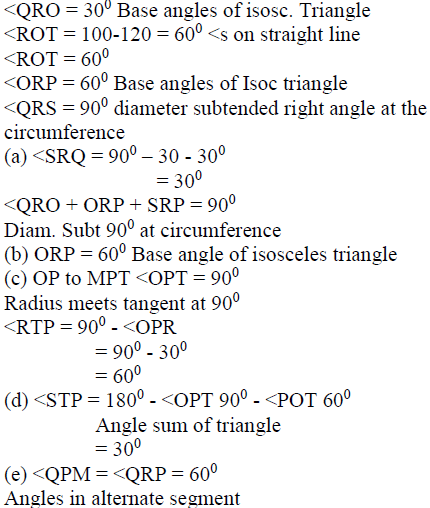

Find the values of the following angles stating reasons in each case.
(a) SRP
(b) ORP
(c) RPT
(d) STP
(e) QPM

---

---

Kavungya answered the question on June 18, 2019 at 13:02
