The figure below shows a plan of a roof with a rectangular base ABCD. AB = 20cm and BC = 12cm. the ridge PQ =...

The figure below shows a plan of a roof with a rectangular base ABCD. AB = 20cm and BC = 12cm. the ridge PQ = 8cm and is centrally placed. The faces ADP and BCQ are equilateral triangles. N is the midpoint of AD
Calculate:
(a) The length of PN
(b) The altitude of P above the base.
(c) The angle between the planes ABQP and ABCD.
(d) The obtuse angle between the lines PQ and DB

Answers


sharon
sharon kalunda answered the question on August 9, 2019 at 12:57

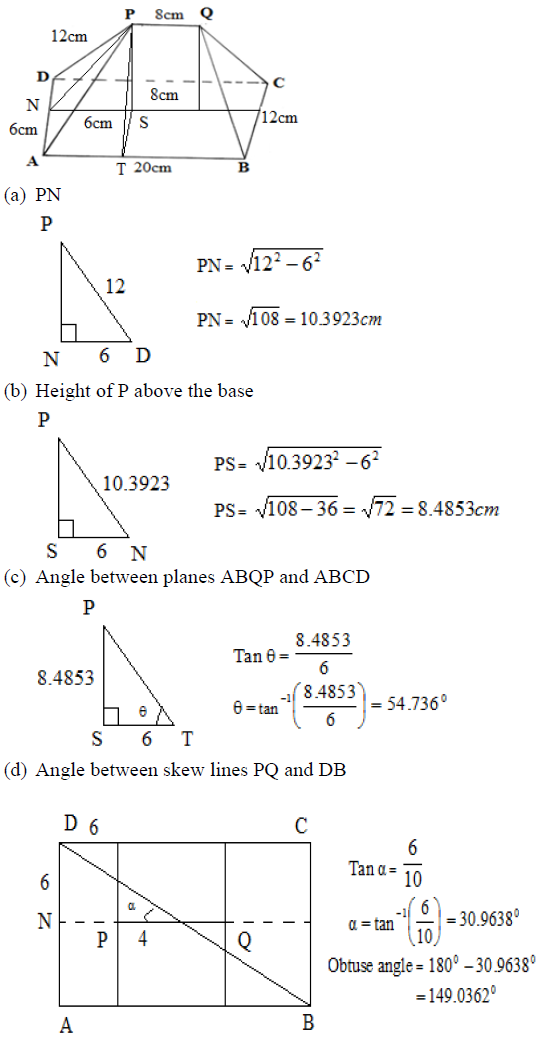

Answer Attachments
