Two vertical columns A and B of height h and 2h respectively stand on level ground and are 100m apart. Two points P and Q...

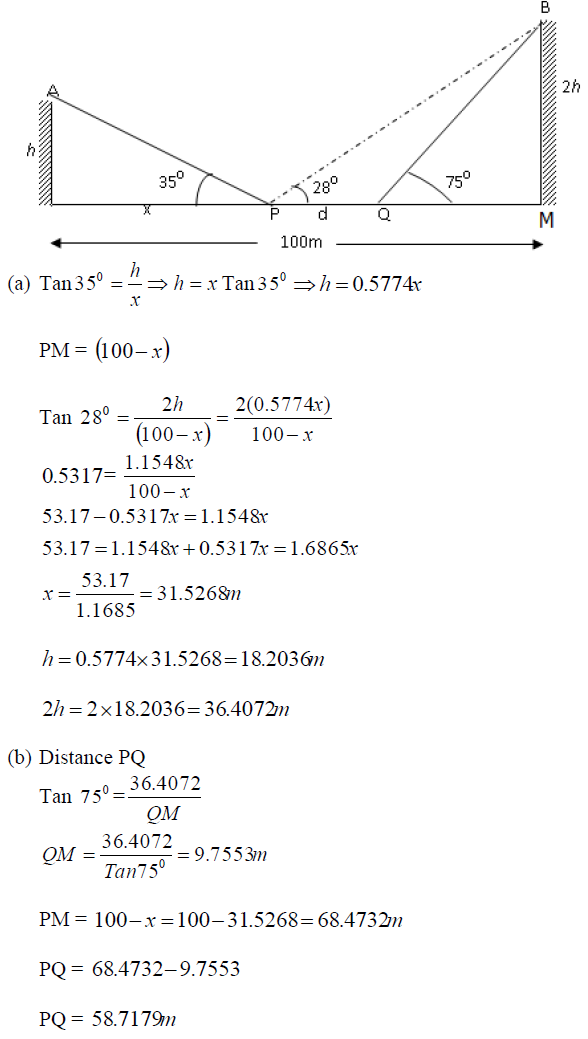

Two vertical columns A and B of height h and 2h respectively stand on level ground and are 100m apart. Two points P and Q are d metres apart, the elevation of the top of A and B from point P are 35⁰ and 28⁰ respectively and the elevation of top of B from point Q is 75⁰
Calculate
(a) The vertical heights of the two columns in metres
(b) The distance PQ in metres

---

---

sharon kalunda answered the question on August 9, 2019 at 13:06
