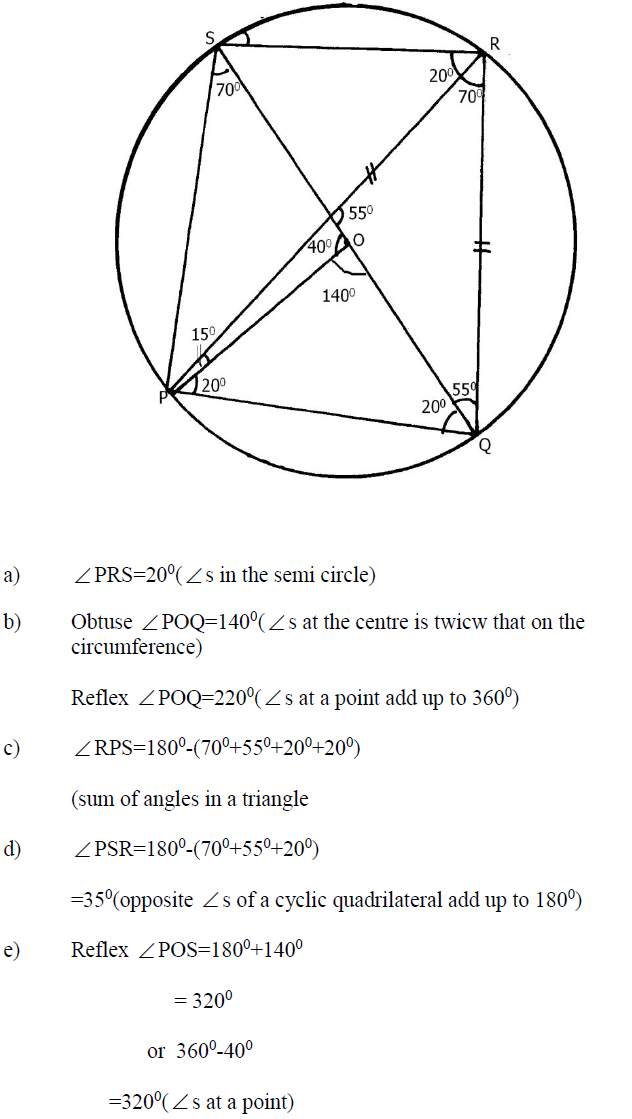

The figure below shows a circle centre O. PQRS is a cyclic quadrilateral and QOS is a straight line. Giving reasons for your answers, find the...

The figure below shows a circle centre O. PQRS is a cyclic quadrilateral and QOS is a straight line.

Giving reasons for your answers, find the value of:
a) b) c) d) e) Reflex

---

---

sharon kalunda answered the question on August 13, 2019 at 12:01
