The figure below shows a buoy of capacity 40 litres and mass 10kg. It is held in position in sea water of density 1.04g/cm³ by a...

The figure below shows a buoy of capacity 40 litres and mass 10kg. It is held in position in sea water of
density 1.04g/cm³ by a light cable fixed to the bottom so that ¾ of its volume is below the water surface.

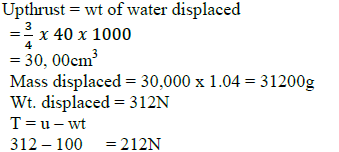

Determine the tension in the cable.

---

---

sharon kalunda answered the question on September 6, 2019 at 07:24
