The figure below shows a PN junction diode used in a rectifier.

The figure below shows a PN junction diode used in a rectifier.

i. What type of rectification is shown?
ii. Describe how the rectification is achieved.
iii. State two disadvantages of this rectification.

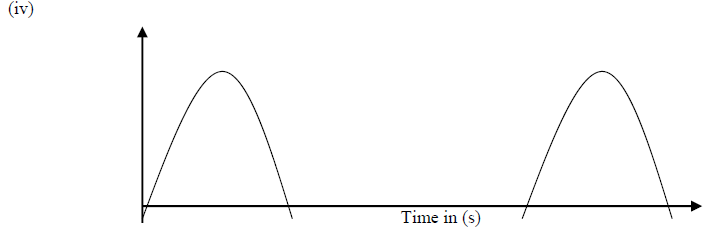

iv. In the space provided below, sketch the output signal displayed on the CRO during the rectification process.

---

(i) Half-wave rectification
(ii) During the first half cycle, the diode is forward biased, hence current flows in the second half cycle, the diode is reverse biased therefore no current flow. In the next cycle, the process repels itself.
(iii) - Output cycle is not smooth.
- Power loss at the half-cycle is eliminated.

---

sharon kalunda answered the question on September 11, 2019 at 11:49
