In the fig.ABCDGH is a rectangular based wedge with AD=6cm and CD=15cm.The midpoint of AD is N and DG =GA=BH=HC =9cm.If GH =7cm, calculate the...

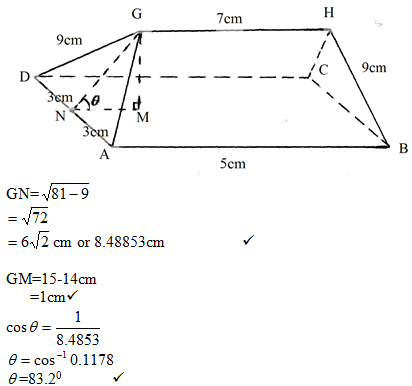

In the fig.ABCDGH is a rectangular based wedge with AD=6cm and CD=15cm.The midpoint of AD is N and DG =GA=BH=HC =9cm.If GH =7cm, calculate the angle between planes ADG and the base ABCD.

Answers

Kavungya answered the question on September 16, 2019 at 08:15

Answer Attachments

Next: Explain how the Iris muscle controls the size of pupil when exposed to bright light.

Previous: A variable u is partly constant and partly as the square of t. When t=2,u=0 and when t=1,u=3.Find (a) the law connecting u and t. (b) the value of...
