The figure below shows a uniform bar of weight 5N and length 1.1m pivoted at a point and in equilibrium under the action of the...

The figure below shows a uniform bar of weight 5N and length 1.1m pivoted at a point and in equilibrium under the action of the forces shown.

Determine the value of weight W.

---

---

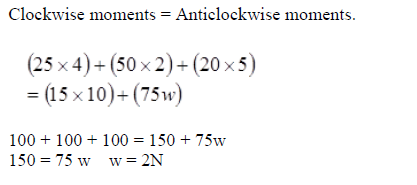

sharon kalunda answered the question on September 30, 2019 at 11:38
