In the figure below OA = a, OB = b, OA : AE = 2 : 3 and OB : OC = 1 : 2 a)...

In the figure below OA = a, OB = b, OA : AE = 2 : 3 and OB : OC = 1 : 2
a) Express AC and BE in terms of a and b
i) AC
ii) BE
b) If DC = kAC and BD = mBE where k and m are scalars.
By expressing DC in two ways, determine the values of k and m.
c) Find the ratio of BD : DE

Answers


Kavungya
Kavungya answered the question on November 5, 2019 at 06:56

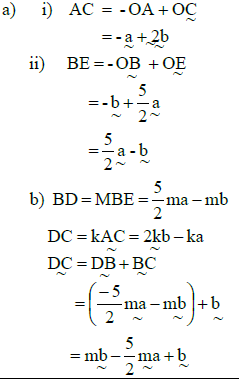

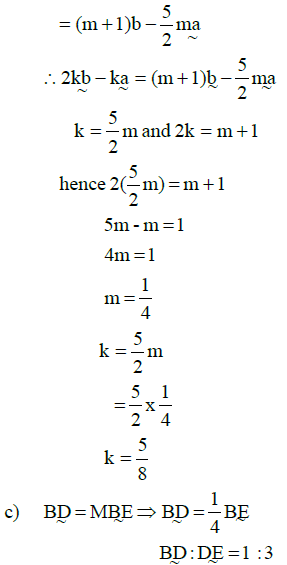

Answer Attachments
