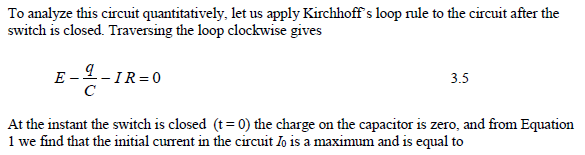

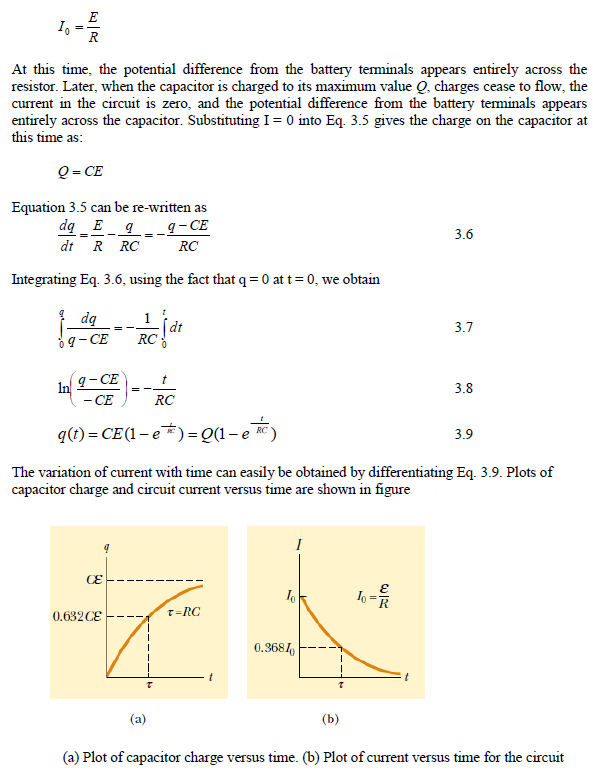

A battery, a capacitor and a resistor are connected as shown in figure below. Obtain an expression for the charge after the switch is closed. When switch...

A battery, a capacitor and a resistor are connected as shown in figure below. Obtain an expression
for the charge after the switch is closed.
When switch is closed at 1, capacitor charging and when at position 2, the capacitor is
discharging.

---

At steady state:
Capacitor voltage and current reach their final values and stop changing; the capacitor has
voltage across it, but no current flows through the circuit.

---

Kavungya answered the question on May 12, 2021 at 05:41
