A small construction project involves the following activities: Required: i) Determine the shortest time and associated cost to finish this project. ii) If a penalty of Sh.4,500 must...

A small construction project involves the following activities:


Required:
i) Determine the shortest time and associated cost to finish this project.
ii) If a penalty of Sh.4,500 must be charged for every day beyond 12 days, what is the most economical time for completing the project?

Answers


Wilfred

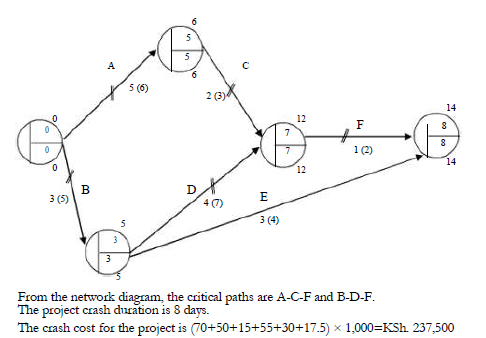

i) The shortest time to finish the project is determined by crashing all the activities. The network diagram drawn using crash times is drawn as follows. (Note the normal duration for activities is in brackets and event times are above and below the events)

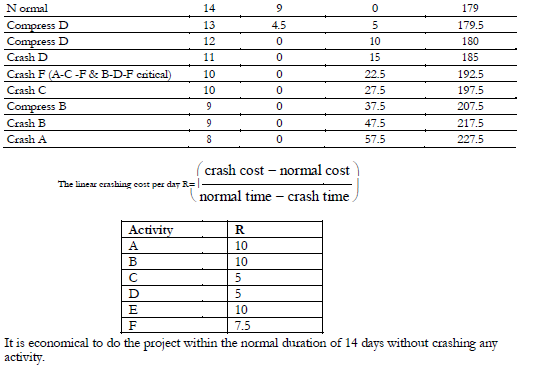

ii) The cost schedule table is as follows.
Wilfykil answered the question on February 20, 2019 at 07:34
