A flag post 12m long is fixed on top of a tower. From a point on horizontal ground, the angles of elevation of the top...

A flag post 12m long is fixed on top of a tower. From a point on horizontal ground, the angles of elevation of the top and bottom of the flag post are 46⁰ and 33⁰ respectively.
Calculate
a) The horizontal distance from the point on the ground to the base of the tower.
b) The total height of the tower and the flag.
c) The shortest distances from the point on the ground to
i) The top of the flag post.
ii) The top of the tower.

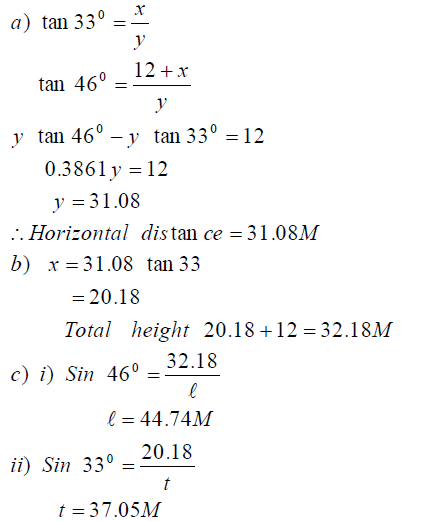

Answers

sharon kalunda answered the question on August 15, 2019 at 13:47

Answer Attachments
