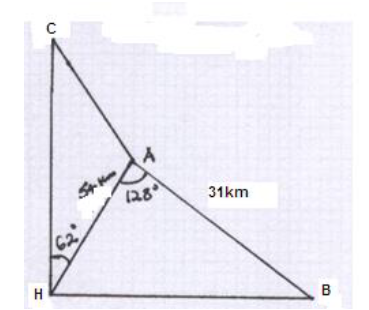

The diagram below (not drawn to scale) shows the position of a harbor H and three islands A,B and C. C is due North of...

The diagram below (not drawn to scale) shows the position of a harbor H and three islands A,B and C. C is due North of H. The bearing of A from H is 0620 and angle HAB=1280 HA=54km and AB=31km.
a) Calculate the distance HB
b) Find the bearing of B from A
c) Given that the bearing of A from C is 1330, calculate AC
d) A light ship L is positioned due North of H and equidistant from A and H.
Calculate HL.

Answers


sharon
sharon kalunda answered the question on August 15, 2019 at 14:01

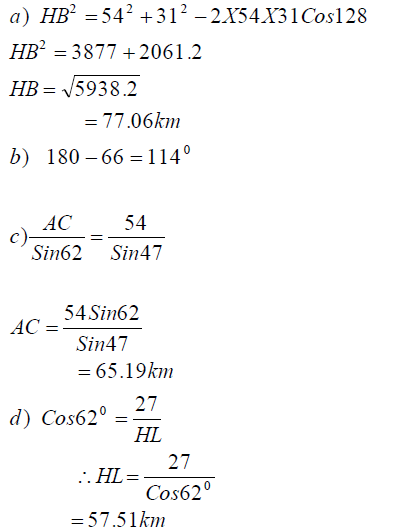

Answer Attachments
