Below is part of a circuit that was setup by form four students of Okok Seconday School during a physics practical lesson to demonstrate full...

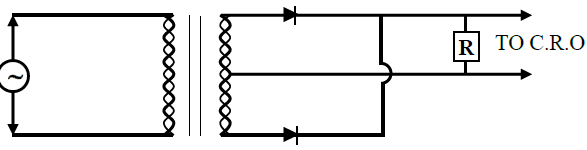

Below is part of a circuit that was setup by form four students of Okok Seconday School during a physics practical lesson to demonstrate full wave rectification using two diodes. Complete the circuit by correctly placing the load R and two diodes.

---

---

sharon kalunda answered the question on September 6, 2019 at 08:21
