A mass of 80kg is being lifted by a force F applied on the other piston of the machine as shown in the figure...

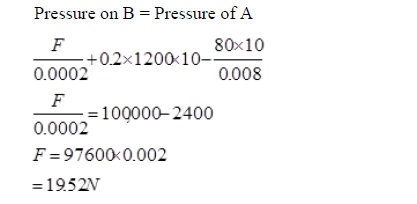

A mass of 80kg is being lifted by a force F applied on the other piston of the machine as shown in the figure below.Determine the value of F needed to just lift the 80kg mass given the density of the liquid is 1.2g/cm³.

---

---

sharon kalunda answered the question on September 30, 2019 at 12:04
