SPH 307: Thermal Physics II Notes

KES 130
Secure M-PESA Paybill • Instant digital delivery
View all Notes.
1261 Views
1 Purchases

Summary

The notes are comprehensive, learner friendly. They are easy to understand and also are based on the competency. This handout has been prepared in a way that it will govern a learner to deeply understand about the course unit the same way it will handled by the lecturer.
The handout has several worked examples and also practice questions to enable the learner solve any kind of question based on the course.

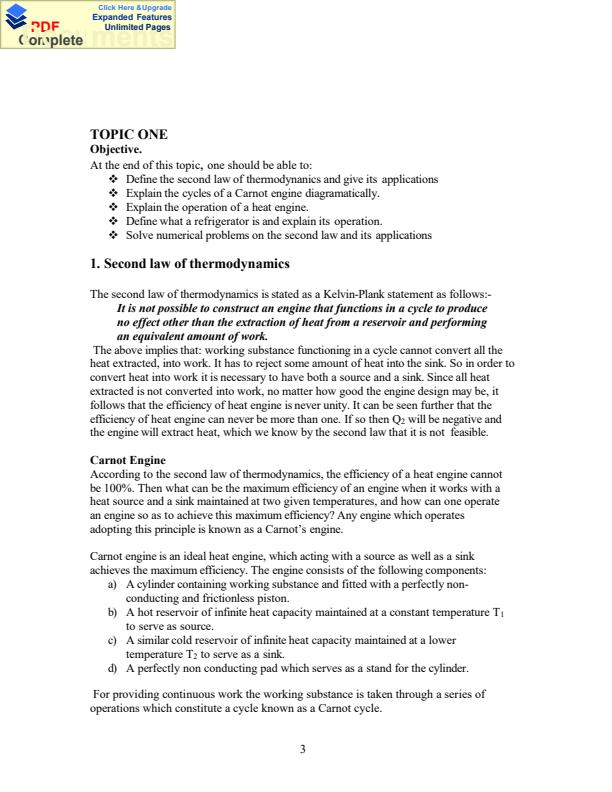

TOPIC ONE
Objective.
At the end of this topic, one should be able to:
? Define the second law of thermodynanics and give its applications
? Explain the cycles of a Carnot engine diagramatically.
? Explain the operation of a heat engine.
? Define what a refrigerator is and explain its operation.
? Solve numerical problems on the second law and its applications
1. Second law of thermodynamics
The second law of thermodynamics is stated as a Kelvin-Plank statement as follows:-
It is not possible to construct an engine that functions in a cycle to produce no effect other than the extraction of heat from a reservoir and performing an equivalent amount of work..........................................

You’re viewing a preview. Buy now to unlock the full document and download instantly after M-PESA payment.

  • Page 1 – SPH 307: Thermal Physics II Notes – Kenyaplex
  • Page 2 – SPH 307: Thermal Physics II Notes – Kenyaplex
  • Page 3 – SPH 307: Thermal Physics II Notes – Kenyaplex
  • Page 4 – SPH 307: Thermal Physics II Notes – Kenyaplex
........

This is the end of this document preview. Buy to download the complete document.
